Carbide Substrate


Carbide Substrate

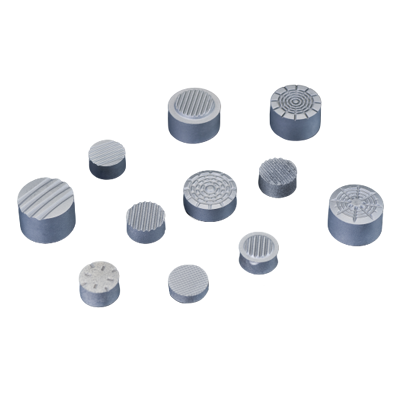

As a new ultra-hard product, PDC cutter and cutting tool have been used in many industrial sectors, especially in oil & mine drilling. Suzhou Shareate Company has the most advanced technique of material design, mould design and manufacturing. Carbide substrates with various interface shapes significantly reduce the internal stress in PDC cutter manufacturing process, which makes combination in excellent abrasion resistance of diamond with high impact resistance of carbide.


Grade chart for carbide substrate

Grade

Cobalt content

%

density

g/cm³

hardness

HRA

Bending strength

N/mm²

Abrasion resistance

1/cm³

Fracture toughness

Mpa m1/2

JZ08

8

14.75

89.5

3000

10

13.4

XR111

11

14.43

89.7

3000

7.5

13

JZ13

13

14.20

87.5

2800

5

16.7

XR13II

13

14.20

88.7

3300

7

14

JZ13A

13

14.22

88.5

3300

6.5

14.5

JZ16

16

13.95

86.5

2850

3.6

16.8

Applied to the oil and gas, coal geology, cutting tool.





Rock drilling alloy base

Model and Specification of Carbide Substrate for mining

MODEL

Nominal Dimension (mm)

D

H

J15 Type

J1504

14.6

4.0

J1508

15.0

8.0

J1513

15.2

13.0

J18 Type

J1812

18.0

12.0

J1813

18.4

13.0

J21Type

J2108

21.0

21.4

8.0

J2113

13.0

J2116

16.2

J2119

19.0

Remarks: The customized specification is available


Model and Specification of Carbide Substrate for PDC Compact

model

Nominal Dimension (mm)

D

H

SR

h

Q08Type

Q0808

8

8

4

3

Q0810

10

4

3

Q0812

12

4

3

Q13 Type

Q1308

13

8

7

6

Q1312

12

7

6

Q16 Type

Q1610

16

10

8

7

Q1618

18

8

7

Q19Type

Q1913

19

13

9.5

9

Q1917

17

9.5

9

Q22 Type

Q2225

22

25

12

10



model

Nominal Dimension (mm)

D

H

SR

h

Z09 Type

Z0910

9

10

2.5

3

Z12 Type

Z1216

12

16

3.5

6.5

Z13 Type

Z1318

13

18

4

7.5

Z15 Type

Z1520

15

20

5

7.5

Z17 Type

Z1724

17

24

5.0

11


Carbide Substrate for Cutting

model

Nominal Dimension (mm)

D

H

J28 Type

J2804

28.5

4

J32 Type

J3203

32.5

3

J47 Type

J4704

47.7

3

J52 Type

J5203

52

3

J54 Type

J5403

54

3

J58 Type

J5803

58

3(2.5)

J66 Type

J6603

66

3(2.5)

J77 type

J7704

77.4

4

Remarks:The customized specification is available
